6-Decimal Refractometry for CFR Part 11 Compliance: Eliminating Batch Variance in Pharma and Personal Care Manufacturing

Posted on by DEBBIE SHAW
22
Oct

By combining high-resolution optical sensing, Peltier temperature control, and full FDA 21 CFR Part 11 electronic data integrity into a unified analytical suite, the Bellingham + Stanley RFM900-T Refractometer and DSG Series Density Meter solve quality control bottlenecks for pharmaceutical and personal care manufacturers. In regulated production environments, proving raw material identity and batch consistency is non-negotiable. Quality assurance teams testing complex formulations, active pharmaceutical ingredients (APIs), essential oils, syrups, and personal care emulsions routinely face thermal drift, difficult sample cleanup, and strict audit compliance standards.

Bellingham + Stanley’s RFM900-T Series Digital Refractometer and DSG Series Density Meter tackle these operational hurdles directly, delivering fast, reproducible physical property measurements with complete data traceability.

Precise Refractometry: RFM900-T Series

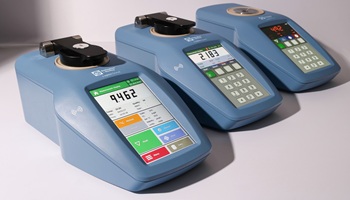

The RFM900-T Series features Peltier temperature control, a wide optical range (1.30 to 1.70 RI), and a flat synthetic sapphire prism surface mounted in a shallow stainless-steel dish.

Key Technical Advantages:

  1. Peltier Temperature Control: Eliminates external water baths by rapidly controlling sample temperatures from 10∘C to 80∘C directly on the prism.
  2. Synthetic Sapphire Prism: Ultra-hard surface resists scratching from abrasive particulate or aggressive cleaning agents.
  3. Flat Prism Well: Minimises sample volume requirements (<0.5 mL) and simplifies clean-up between batches.

High-Precision Density Measurement: DSG Series

The DSG Series Density Meter utilises the oscillating U-tube principle to measure sample density with high precision (±0.00005 g/cm3).

The fundamental frequency (f) of the filled oscillating U-tube correlates directly to sample mass and density:

ρ=A⋅T2−B

Where T is the period of oscillation (1/f), and A,B are instrument-specific calibration constants.

  • Viscosity Error Compensation: Auto-corrects density deviations caused by viscous liquids (e.g., syrups, creams, gels).

  • Integrated Air Pump & Desiccant: Enables rapid 15-second measurement cycles and self-contained drying without requiring external gas lines.

Synergy: Multi-Parameter Testing Workflows

Combining the RFM900-T Refractometer with the DSG Density Meter optimises analytical throughput in QA/QC testing.

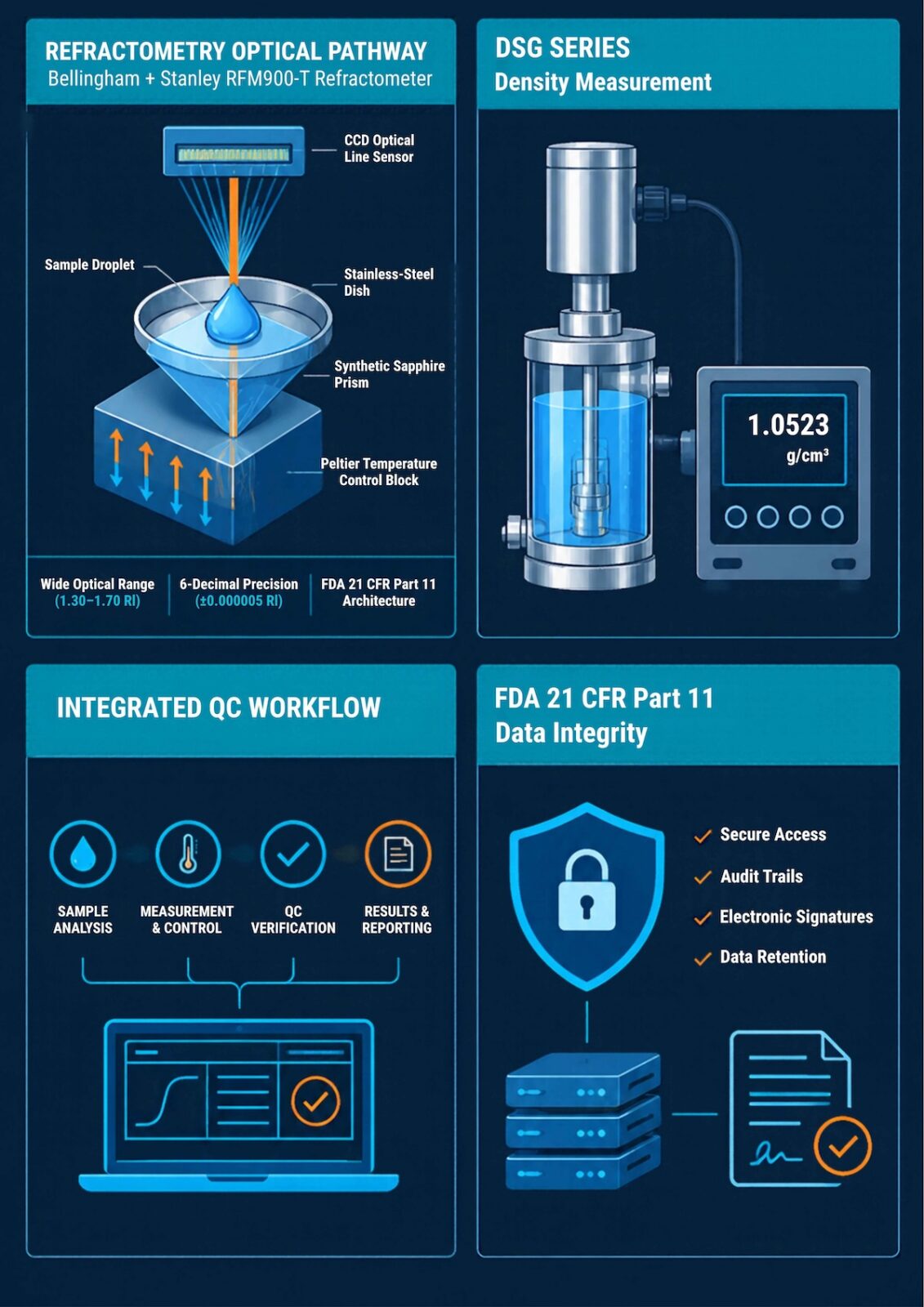

A 4-panel B2B technical infographic in dark blue and cyan. Top Left: "Refractometry Optical Pathway" illustrating sample droplet placement on a synthetic sapphire prism inside a stainless-steel dish, Peltier temperature control block, and CCD optical line sensor with key specs (1.30–1.70 RI range, ±0.000005 RI 6-decimal precision, 21 CFR Part 11 architecture). Top Right: "DSG Series Density Measurement" showing a digital density meter display with a reading of 1.0523 g/cm³. Bottom Left: "Integrated QC Workflow" mapping sample analysis, measurement control, QC verification, and results reporting directly to a digital laptop interface. Bottom Right: "FDA 21 CFR Part 11 Data Integrity" showing a lock shield, secure server stack, signed report document, and compliance checklist highlighting Secure Access, Audit Trails, Electronic Signatures, and Data Retention.
Eliminate compliance bottlenecks and accelerate QA/QC testing with Bellingham + Stanley’s integrated analytical suites. The RFM900-T Refractometer features a wide optical range of 1.30 to 1.70 RI, 6-decimal precision (±0.000005 RI), rapid Peltier temperature control, and a scratch-resistant synthetic sapphire prism in a stainless-steel dish. Combined with the DSG Series Density Meter (showing real-time 1.0523 g/cm³ precision reads), this integrated QC workflow automates sample analysis, measurement control, verification, and LIMS reporting—backed by built-in FDA 21 CFR Part 11 electronic audit trails, secure access control, and digital signatures.

Data Integrity & Compliance: 21 CFR Part 11 Ready

In regulated pharmaceutical production, data integrity is mandatory. Both the RFM900-T and DSG Series feature built-in software architectures that support FDA 21 CFR Part 11 compliance.

Technical Specifications Overview

Specification Parameter RFM900-T Refractometer DSG Density Meter
Measuring Range ()
Accuracy Up to (6 d.p.) Up to
Temperature Control to (Peltier) to (Peltier)
Prism / Tube Material Artificial Sapphire Borosilicate Glass
Compliance Standards 21 CFR Part 11, USP / EP / BP 21 CFR Part 11, USP

Ready to Ensure 21 CFR Part 11 Compliance in Your QC Lab?

Guarantee raw material identity, formulation purity, and complete audit trail compliance across your operations. Contact the Labotec technical team today to speak with an analytical specialist or request pricing:



Resources

  • View the official Bellingham + Stanley RFM900-T digital refractometer page here OR -->DOWNLOAD THE BROCHURE<–
  • View the official Bellingham + Stanley DSG Series density meter page here OR -->DOWNLOAD THE BROCHURE<–
  • Download your free guide for tips on getting the best out of your refractometer here: Tips
